Products Description
Extraordinary Flexibility
Enjoy easy maneuverability with a turning radius of just 4.2 meters.
Ergonomic Design for Comfort
Features a smooth-shifting synchronizer gearbox and a premium Grammer seat for maximum comfort.
International Collaboration Excellence
Jointly developed with AVL, incorporating cutting-edge global technology for industry-leading performance.

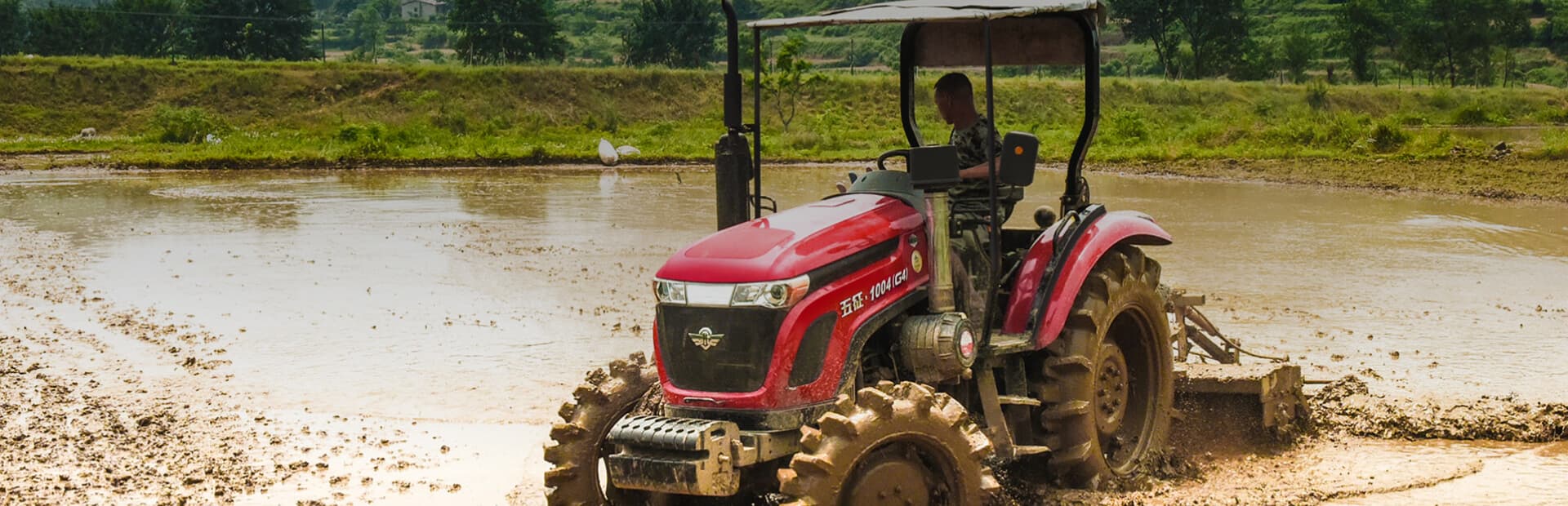

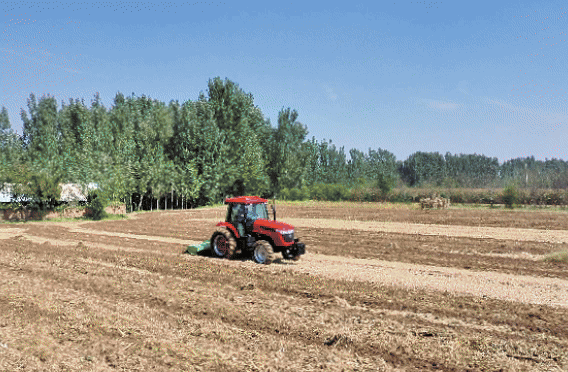

Versatile Workhorse
Whether plowing, leveling, or puddling, its high ground clearance and waterproof design ensure reliable operation, even in muddy conditions, with a top speed of 39 km/h for fast transitions.

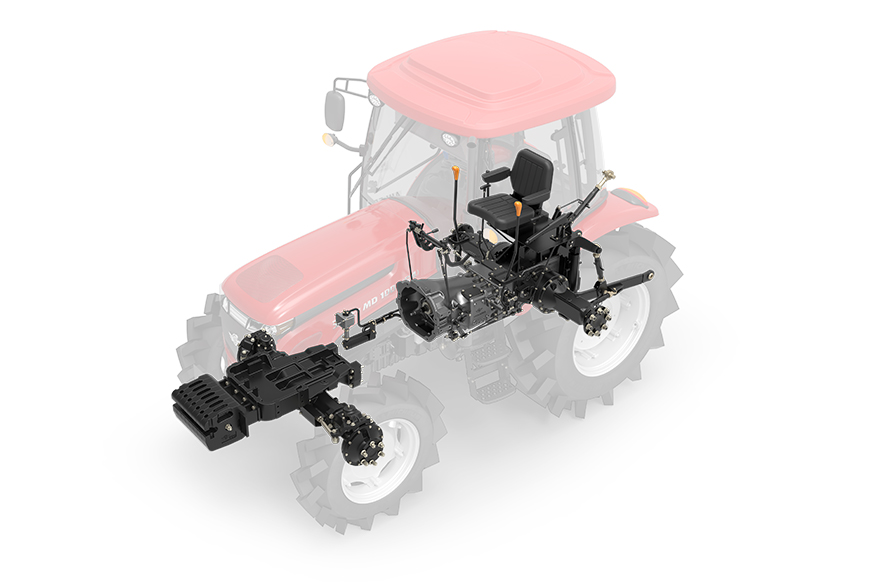

Power and Precision in Harmony
With 16+8 gear options and an optimized powertrain and chassis, it delivers peak performance at all times.
Built to Last

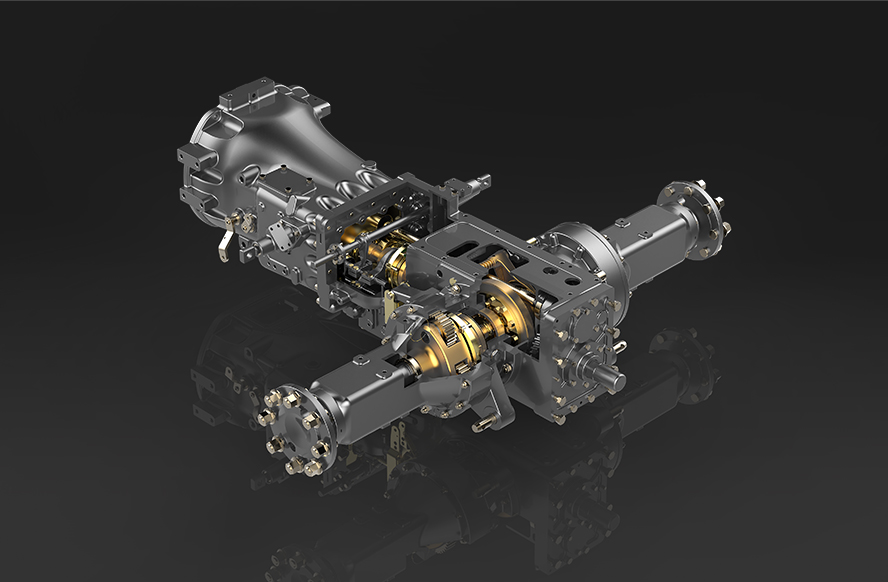

Designed with tubular housings, helical gear drives, and a triple-shaft structure to ensure long-term reliability.
Technical specification
wuzheng 40 Horsepower tractors
wuzheng 40-80 Horsepower NS Se
wuzheng 80-150 Horsepower MD S
wuzheng 80-150 Horsepower ME S
| Item | Unit | Design value |
| Model | / | MD1004 |
| L×W×H | mm | 4120×2000×2775 |
| Wheelbase | mm | 2145 |
| Minimum ground clearance | mm | 470(bottom of front axle) |
| Minimum useable mass | kg | 3300 |
| Maximum lifting force | kN | 15.9 |
| Minimum turning radius | m | 4.2 |
| Engine - Type | / | Direct injection, in-line, liquid-cooled, four-stroke |
| Engine - Model | / | 4G33TC-100G31C/YN38 |
| Rated engine power | kW | 73.5 |
| Rated engine speed | r/min | 2300 |
| Drive system - Transmission type | / | 16+8/16+16/32+32 |
| Drive system - Auxiliary gearbox shifting method | / | Synchronizer gear shift |
| Running System - Tire model (front wheel) | / | 9.5-24/9.5-24(paddy field)/11.2-24 |
| Running System - Tire model (Rear wheel) | / | 16.9-30/14.9-30/16.9-30(paddy field)/14.9-30(paddy field) |
